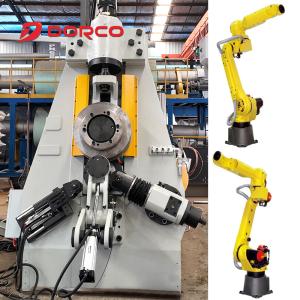

Based on the innovative concept of intelligent manufacturing, Dorco Heavy Industries has carried out comprehensive technological innovation on traditional ring rolling production lines. The automated production line of the ring rolling machine is mainly designed for 5KG-10KG forged rings, with a maximum output of 240 pieces/hour. Refactoring the production process to create an intelligent production solution that integrates efficiency, precision, and energy conservation.
1. Use a slide table with a single axis robot to grab the bars from the heating furnace and send them to the upsetting station of the press;
2. Use a flat four axis robot to transfer workpieces at three workstations of the press;
3. Single axis robots equipped with ejector devices and transition tables are used to unload and wait for materials at the three workstations of the press;
4. Adopting a dual robot mobile platform for automatic loading and unloading of the ring rolling machine;
5. Use KUKA210 robot for loading, unloading, and palletizing of ring components;
6. Automation auxiliary equipment: waste conveying installation;
7. Mold cooling and cleaning device;
8. Raw material cooling conveyor line;
9. Stacking pallets, etc.
| Name | CNC Ring Rolling Machine Production Line | forged rings | 5KG-10KG |
| robot | KUKA210 Robot | Max. output | 240 pieces/hour |
| Equipment size | customizable according to model | Automatic | Yes |
Covering the production of small and medium-sized ring forgings in high-end fields such as new energy motor rings and aerospace fasteners, to help upgrade the precision manufacturing industry.
If you have high requirements for the automation level of the ring rolling machine, we can customize a fully automatic ring rolling machine for you. It can achieve functions such as automatic loading and unloading, automatic adjustment of rolling parameters, and automatic detection of ring quality, realizing fully automated control of the entire production process.
