240 Pieces / Hour Ring Rolling Machine Automatic Feeding And Unloading Efficient Production Line

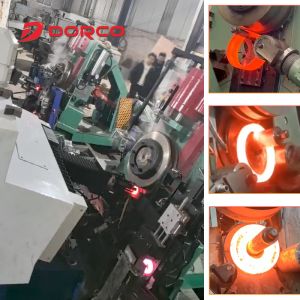

The Duoleke Heavy Industry Ring Rolling Machine Automation Production Line is specially designed for forging rings weighing 5KG to 10KG, with a maximum output of 240 pieces per hour. The main equipment includes one 650KW continuous induction heating furnace, which can heat quickly and evenly; One 400T closed press, with a unique three station design that improves work efficiency; One 250E CNC ring rolling machine ensures high precision in ring rolling processing.
The advantages of the automated production line of the ring rolling machine are outstanding:
Labor saving: It can automatically count, detect, weigh, and place items, greatly improving the automation and accuracy of production.
Green development: It has high precision, saves materials and energy, and conforms to the concept of sustainable development.
Easy and convenient operation: adopting an automated production mode, and the equipment has a long service life, reducing long-term usage costs.
Core Performance Advantages
1. Use a slide table with a single axis robot to grab the bars from the heating furnace and send them to the upsetting station of the press;
2. Use a flat four axis robot to transfer workpieces at three workstations of the press;
3. Single axis robots equipped with ejector devices and transition tables are used to unload and wait for materials at the three workstations of the press;
4. Adopting a dual robot mobile platform for automatic loading and unloading of the ring rolling machine;

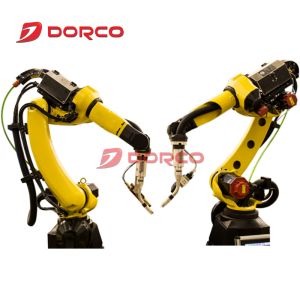

5. Use KUKA210 robot for loading, unloading, and palletizing of ring components;
6. Automation auxiliary equipment: waste conveying installation;
7. Mold cooling and cleaning device;
8. Raw material cooling conveyor line;
9. Stacking pallets, etc.
Applications
This production line is widely used for batch efficient and precision manufacturing of circular forgings such as bearings and flanges.
For more information about our automated ring rolling machine production line solutions, please contact us for detailed specifications and comprehensive service support.
