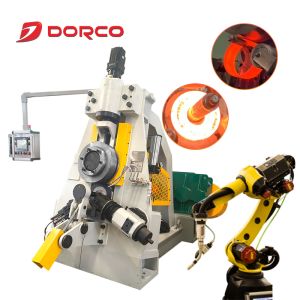

Automatic Ring Rolling Machine Forged Rings 5 - 10KG Automatic Palletizing Tray
The automated production line of the Heavy Industry Ring Rolling Machine is specially designed for forging rings weighing 5KG to 10KG, with a maximum output of 240 pieces per hour. The main equipment includes one 650KW continuous induction heating furnace, which can heat quickly and evenly; One 400T closed press, with a unique three station design that improves work efficiency; One 250E CNC ring rolling machine ensures high precision in ring rolling processing.
The advantages of the automated production line of the ring rolling machine are outstanding:
Labor saving: It can automatically count, detect, weigh, and place items, greatly improving the automation and accuracy of production.
Green development: It has high precision, saves materials and energy, and conforms to the concept of sustainable development.
Easy and convenient operation: adopting an automated production mode, and the equipment has a long service life, reducing long-term usage costs.
The automation configuration is as follows:
1. Use a slide table with a single axis robot to grab the bars from the heating furnace and send them to the upsetting station of the press;
2. Use a flat four axis robot to transfer workpieces at three workstations of the press;
3. Single axis robots equipped with ejector devices and transition tables are used to unload and wait for materials at the three workstations of the press;
4. Adopting a dual robot mobile platform for automatic loading and unloading of the ring rolling machine;
5. Use KUKA210 robot for loading, unloading, and palletizing of ring components;
6. Automation auxiliary equipment: waste conveying installation;
7. Mold cooling and cleaning device;
8. Raw material cooling conveyor line;
9. Stacking pallets, etc.
